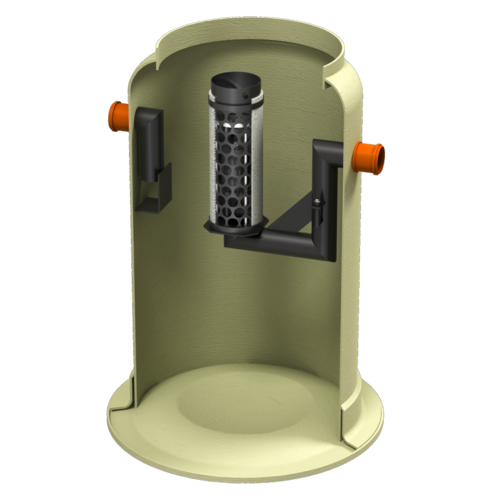

Oleopator-G

Produktfordele

  • Nem at installere, kræver mindre plads
  • Lufttæt opføringsrør
  • Integreret mulighed for tilslutning af prøvetagning
  • Opdriftssikret
  • Opføringsrør kan tilskæres
  • Fuldstændigt tæt udskillersystem
  • Nem og hurtig tilslutning til alarmsystemer

Produktinformation

Godkendelser

  • Godkendt iht. DS / EN 1825
  • Opfylder alle krav mht. flow, styrke, materialer, mærkning og tæthed

Udførsel

  • Fuldstøbt konstruktion
  • Koalescenselement (filter)
  • Integreret sandfang

Materiale

  • Glasfiber
  • Indvendige dele i PEHD
Indløb/Udløb

DN/OD
Nominel kapacitetIndholdVægtVare-

nummer
Downloads
SlamfangOlietankGenerelt
[l][l][l][kg]
110NS 330016364711012601.41
60016391012512602.41
900464160818012603.41
NS 43300380396621512672.41
4500552539440512673.01
160NS 660016087117012611.41
1200236155118012612.41
1800434285224012613.41
3200630427436012674.41
4200630526639012675.41
5200630627241512676.41
NS 81800434285225012678.41
2500434337426512679.41
3200630427436012680.41
5200630627241512682.41
NS 101000273155120012621.41
2000630285225012683.41
2500630337426512684.41
3200630427436012685.41
5200630627241512686.41
200NS 15464177429512630.41
1500464230539012631.41
3000464380752512632.41
62001027796756012677.41
NS 20594177432512641.41
2000594330351012645.41
40001163656148512642.41
60001163806356012643.41
250NS 30654173931512650.41
30001513629547512651.41
60001513895662012652.41
315NS 401350414744512660.41
40001350739756512661.41
NS 501350490741512670.41
50001350806363012671.41
Nominel kapacitetIndholdVægtVare-

nummer
SlamfangOlietankGenerelt
NS 3300 l163 l647 l110,0 kg12601.41
NS 3600 l163 l910 l125,0 kg12602.41
NS 3900 l464 l1.608 l180,0 kg12603.41
NS 43.300 l380 l3.966 l215,0 kg12672.41
NS 44.500 l552 l5.394 l405,0 kg12673.01
NS 6600 l160 l871 l170,0 kg12611.41
NS 61.200 l236 l1.551 l180,0 kg12612.41
NS 61.800 l434 l2.852 l240,0 kg12613.41
NS 63.200 l630 l4.274 l360,0 kg12674.41
NS 64.200 l630 l5.266 l390,0 kg12675.41
NS 65.200 l630 l6.272 l415,0 kg12676.41
NS 81.800 l434 l2.852 l250,0 kg12678.41
NS 82.500 l434 l3.374 l265,0 kg12679.41
NS 83.200 l630 l4.274 l360,0 kg12680.41
NS 85.200 l630 l6.272 l415,0 kg12682.41
NS 101.000 l273 l1.551 l200,0 kg12621.41
NS 102.000 l630 l2.852 l250,0 kg12683.41
NS 102.500 l630 l3.374 l265,0 kg12684.41
NS 103.200 l630 l4.274 l360,0 kg12685.41
NS 105.200 l630 l6.272 l415,0 kg12686.41
NS 150 l464 l1.774 l295,0 kg12630.41
NS 151.500 l464 l2.305 l390,0 kg12631.41
NS 153.000 l464 l3.807 l525,0 kg12632.41
NS 156.200 l1.027 l7.967 l560,0 kg12677.41
NS 200 l594 l1.774 l325,0 kg12641.41
NS 202.000 l594 l3.303 l510,0 kg12645.41
NS 204.000 l1.163 l6.561 l485,0 kg12642.41
NS 206.000 l1.163 l8.063 l560,0 kg12643.41
NS 300 l654 l1.739 l315,0 kg12650.41
NS 303.000 l1.513 l6.295 l475,0 kg12651.41
NS 306.000 l1.513 l8.956 l620,0 kg12652.41
NS 400 l1.350 l4.147 l445,0 kg12660.41
NS 404.000 l1.350 l7.397 l565,0 kg12661.41
NS 500 l1.350 l4.907 l415,0 kg12670.41
NS 505.000 l1.350 l8.063 l630,0 kg12671.41
Nominel kapacitetIndløb/Udløb i henhold til DIN EN 877Mål
H1H2
[mm][mm]
NS 3110880860
12151195
14801460
NS 411022952275
21702150
NS 616011651145
14301410
16651645
17301710
21202100
25152495
NS 816016651645
19601940
17301710
25152495
NS 1016014301410
16651645
19601940
17301710
25152495
NS 1520010551035
13551335
22052185
22602240
NS 2020010551035
19201900
18901870
22852265
NS 3025010351015
18201800
25202500
NS 4031512551235
21102090
NS 5031514551435
22852265
