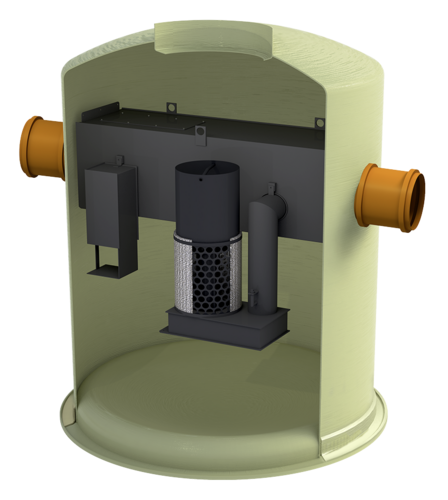

Oleopator-G Bypass

Indløb/Udløb

DN/OD
Nominel kapacitetIndholdVægtVare-

nummer
Downloads
SlamfangOlietankGenerelt
[l][l][l][kg]
315NS 6600412137726012541.41
1200412190730012542.41
1800412290530512543.41
NS 8800412190726512544.41
1600412238429012545.41
2400412340932512546.41
400NS 101000412180130012547.41
2000412279932012548.41
3000412378036012549.41
NS 151500902352060012550.41
3000902473673012551.41
4500902623880012552.41
NS 2020001197473675012553.41
40001197739781012554.41
60001197899490012555.41
500NS 3030001473585879012556.41
60001473861490012557.41
9000147311617100012558.41
Nominel kapacitetIndholdVægtVare-

nummer
SlamfangOlietankGenerelt
NS 6600 l412 l1377 l260,0 kg12541.41
NS 61200 l412 l1907 l300,0 kg12542.41
NS 61800 l412 l2905 l305,0 kg12543.41
NS 8800 l412 l1907 l265,0 kg12544.41
NS 81600 l412 l2384 l290,0 kg12545.41
NS 82400 l412 l3409 l325,0 kg12546.41
NS 101000 l412 l1801 l300,0 kg12547.41
NS 102000 l412 l2799 l320,0 kg12548.41
NS 103000 l412 l3780 l360,0 kg12549.41
NS 151500 l902 l3520 l600,0 kg12550.41
NS 153000 l902 l4736 l730,0 kg12551.41
NS 154500 l902 l6238 l800,0 kg12552.41
NS 202000 l1197 l4736 l750,0 kg12553.41
NS 204000 l1197 l7397 l810,0 kg12554.41
NS 206000 l1197 l8994 l900,0 kg12555.41
NS 303000 l1473 l5858 l790,0 kg12556.41
NS 306000 l1473 l8614 l900,0 kg12557.41
NS 309000 l1473 l11617 l1000,0 kg12558.41
Nominel kapacitetIndløb/Udløb i henhold til DIN EN 877Mål
H1H2
[mm][mm]
NS 6315860810
11601110
17251675
NS 831511601110
14301380
20101960
NS 1040011001050
16651615
22202170
NS 1540011201070
14401390
18351785
NS 2040014401390
21402090
25602510
NS 3050017351635
24602360
32503150
